Home / Products / Marine Rigging Shackles / G210 American Type D-Forded Die Forged Shackle (CCCXVI)

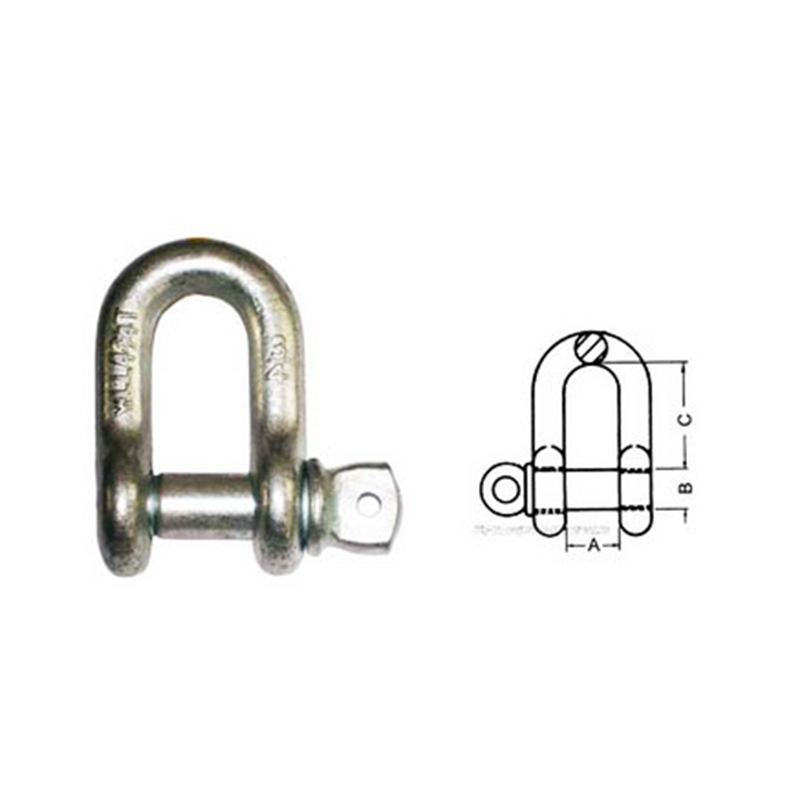

G210 American Type D-Forded Die Forged Shackle (CCCXVI)

G210 American D informibus compede commissis (316) corrosionem valde altam habet resistentiam et durabilitatem et late in ambitus marinis et chemicis asperis adhibetur. Magnitudines producti ab 12mm ad 127mm vagantur, et singulae pondera ab 0.05kg ad 42.5kg vagantur, variis oneris exigentiis obductis. Quaelibet magnitudo vinculorum est praecisio ad mortem fictam ad curandam altitudinem virium et firmitatem, ad usum idoneae ad tollendas, fabricandas et industriales agros..

Inquisitio

G210 American Type D-Forded Die Forged Shackle (CCCXVI)
G210 American Type D-Forded Die Forged Shackle (CCCXVI)

Descriptio Producti

SPECIFICATION （ UNCIA ） EXERCITUS PONDUS （ T ） MENSURA （ MM ） AS PONDUS （ KG ）
A B C
1/4 1/2 12 7.9 22.4 0.05
5/16 3/4 13.5 9.7 26.2 0.08
3/8 1 16.8 11.1 31.8 0.13
7/16 1-1/2 19 12.7 36.6 0.18
1/2 2 20.6 16 41.4 0.27
5/8 3-1/4 27 19 50.8 0.57
3/4 4-3/4 31.8 22.3 60.5 1.19
7/8 6-1/2 36.6 25.4 71.4 1.43
1 8-1/2 43 28.7 81 2.15
1-1/8 9-1/2 46 31.7 90.9 3.06
1-1/4 12 51.6 35 100 4.11
1-3/8 13-1/2 57.1 38.1 111.3 5.28
1-1/2 17 60.4 41.4 122.2 7.23
1-3/4 25 73.1 50.8 146 12.13
2 35 82.5 57.1 171.5 19.19
2-1/2 55 104.9 69.9 203.8 32.27
3 85 127 82.5 215.9 42.50
PRAEVIA: G209 American Type Arcum finem Shackle SEQUENS: G2130 American arcum Shackle
