German Standard Din766 Vinculum Vinculum

Vexillum Germanicum DIN766 nexus catenae latitudinem interiorem 3.5mm ad 43.0mm habet et latitudinem exteriorem 7.5mm ad 108.8mm, quae variis instrumentis et applicationis missionibus accommodari potest. Vinculum pondus variat ab 0.07kg ad 23.00kg per metrum secundum specificationes pendentes, occurrens lumen ad gravia requisita. Quaelibet catenae specificatio praecise disposita est ad diversa onera necessaria et bonam habet firmitatem et stabilitatem

Inquisitionis

German Standard Din766 Vinculum Vinculum
German Standard Din766 Vinculum Vinculum

Product Description

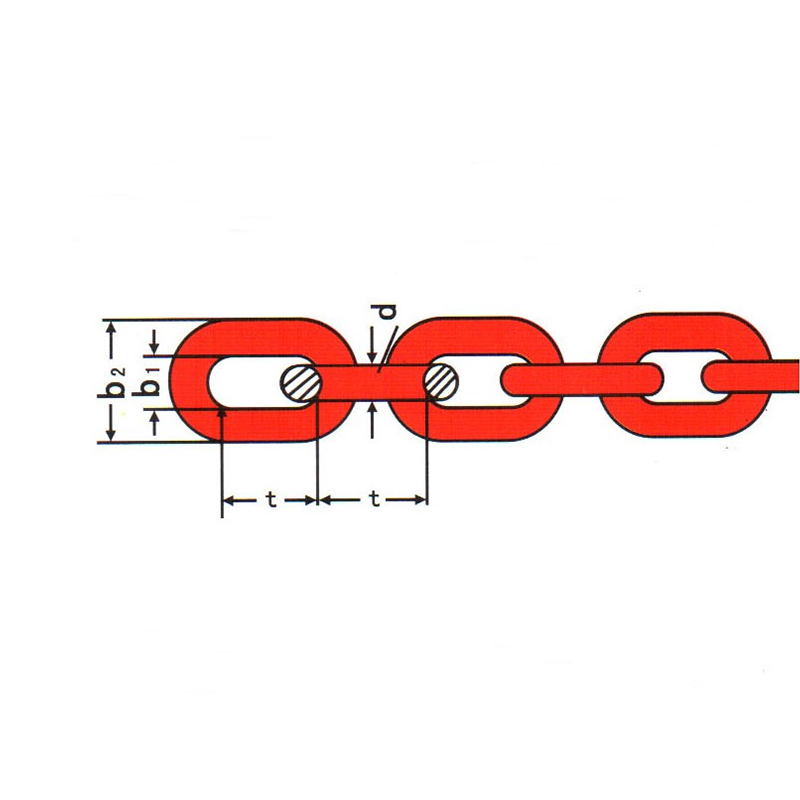

MENSURA D* INTRA TANDEM (L.) INTRA AMPLITUDO (B1) EXTRA latum (B2) TANDEM PER I LINKS PONDUS PER M
D
MENSURA 		±MM MM ±MM MM MM MM ±MM MM KG
2 0.2 12 0.2 3.5 7.5 132 1.0 0.5 0.07
3 0.2 16 0.2 4.2 11.0 176 1.4 0.7 0.16
4 0.2 16 0.3 5.0 13.5 176 2.1 1.1 0.32
5 0.2 18.5 0.4 6.0 17.0 203.5 2.4 1.2 0.50
6 0.2 18.5 0.4 7.2 20.2 203.5 2.4 1.2 0.80
7 0.3 22 0.4 8.4 23.8 242 3.0 1.4 1.10
8 0.3 24 0.4 9.6 27.2 264 3.2 1.5 1.40
9 0.4 27 0.5 10.8 30.6 297 3.6 1.8 1.80
10 0.4 28 0.5 12.0 34.0 308 3.7 1.9 2.20
11 0.4 31 0.5 13.2 37.4 341 4.0 2.0 2.70
12 0.5 36 0.6 14.4 40.8 396 4.4 2.2 3.10
13 0.5 36 0.6 15.6 44.2 396 4.6 2.4 3.80
14 0.6 41 0.7 16.8 47.6 451 5.4 2.7 4.40
16 0.6 45 0.8 19.2 54.4 495 6.6 3.0 5.70
18 0.9 50 0.8 21.6 61.2 550 6.6 3.3 7.30
19 0.9 53 0.9 22.8 64.6 583 7.0 3.7 7.97
20 1.0 56 1.0 24.0 68.0 616 7.4 3.7 9.00
22 1.2 62 1.1 26.4 75.0 682 8.0 4.0 11.00
23 1.2 64 1.1 27.6 78.2 704 8.4 4.2 12.00
26 1.3 73 1.2 31.2 88.4 803 9.6 4.8 15.00
28 1.4 78 1.3 33.8 95.2 858 10.2 5.1 18.00
30 1.5 84 1.4 41.0 102.0 924 11.0 5.5 19.50
32 1.6 90 1.5 43.0 108.8 990 11.8 5.9 23.00
