Home / Products / Anchora ad Vincula Ac Accessories / German Standard Din763 Vinculum Vinculum

German Standard Din763 Vinculum Vinculum

Vexillum Germanicum DIN763 catena (nexura nexus) est summus qualitas catenae longae nexus late in elevatione industriae, tractu et propositis fixum adhibitis. Habet solidam structuram, definitam rationem, ac bonum effectum. Magnitudo catenae ab 2mm usque ad 32mm vagatur, et capacitatis onus operans ab 25kg ad 8000kg pervagatur, quod variis necessitatibus a lumine ad graves operationes occurrere potest. Eodem tempore bonum distrahentes vires, vetustatem, et corrosionem resistentiae habet, ac stabilis effectus etiam in ambitus asperos conservare potest. Praecisa magnitudo et tolerantia catenae DIN763 (qualis est tolerantia 2mm catenae ±0.5mm, catena 8mm ±1mm est) altam quoque accommodationem et salutem in usu praestant.

Inquisitionis

German Standard Din763 Vinculum Vinculum
German Standard Din763 Vinculum Vinculum

Product Description

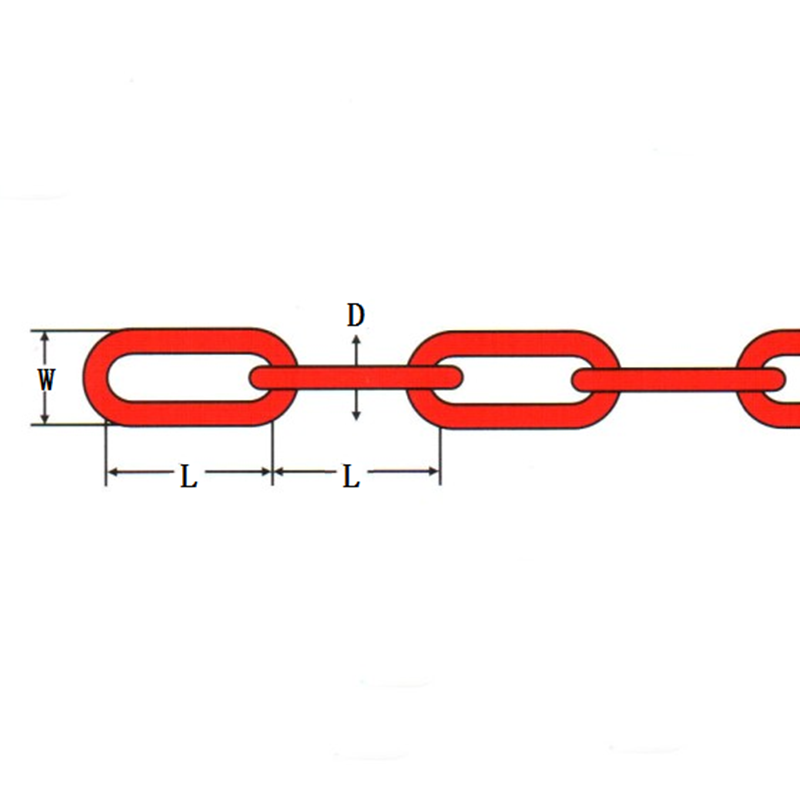

MENSURA D INTRA TANDEM (L) EXTRA AMPLITUDO (W) OPERA LIMITED PONDUS ARGUMENTUM PONDUS FRAGMENTUM PONDUS KG/M
MM ±MM MM ±MM MM ±MM KG N N KG
2 0.5 22 1.0 8 0.4 25 800 1250 0.06
2.5 24 1.1 10 0.5 40 800 2000 0.10
3 26 1.2 12 0.6 55 1050 3200 0.15
3.5 28 1.3 14 0.7 80 1540 3850 0.20
4 32 1.5 16 0.8 100 2000 6000 0.27
4.5 34 1.7 18 0.9 128 2500 6300 0.35
5 35 1.8 20 1 160 3150 10000 0.43
5.5 38.5 1.8 22 1.1 195 3800 9500 0.52
6 42 2.0 24 1.2 224 4500 14000 0.63
7 49 2.5 28 1.4 300 6000 18000 0.86
8 1 52 2.5 32 1.6 400 8000 25000 1.10
8.5 56 2.8 34 1.7 460 9000 22500 1.25
9 59 3.0 36 1.8 530 10500 32000 1.41
10 65 3.2 40 2 630 12500 40000 1.75
11 72 3.4 44 2 790 15800 47500 2.11
12 78 3.6 48 2.3 940 18800 56500 2.55
13 82 4.0 52 2.5 1000 21200 63000 2.95
16 100 5.0 64 3.2 1600 33000 100000 4.45
18 113 5.2 70 3.2 2120 42300 127000 5.65
19 119 5.6 72 3.4 2370 47300 142000 6.25
20 120 6.0 75 3.8 2500 50000 160000 7.00
22 127 6.0 82 4 3170 63300 190000 8.55
25 140 6.6 85 4.2 4090 81700 245000 10.90
28 152 7.0 96 4.7 6000 120000 300000 13.90
32 171 7.8 108 5.2 8000 160000 400000 18.20
